Mô tả

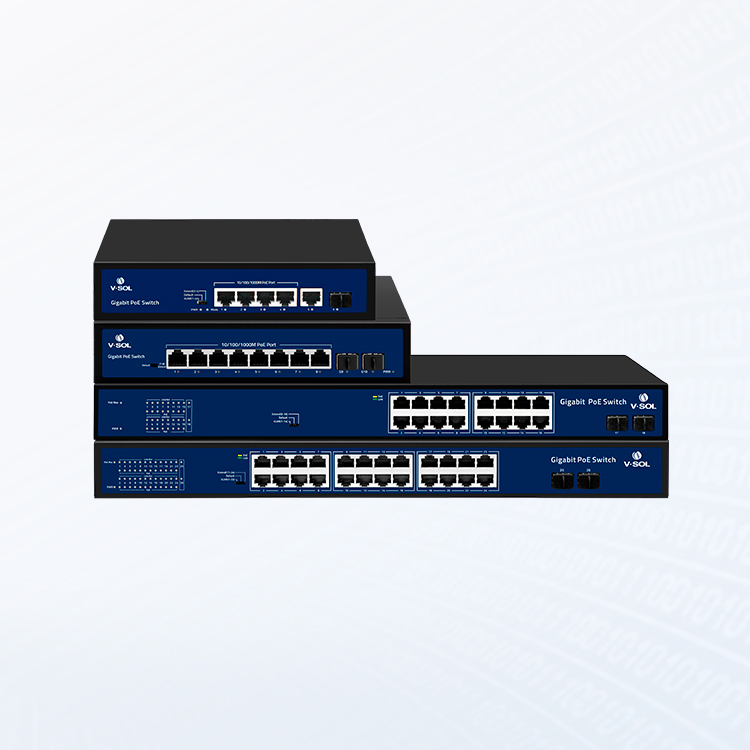

V11XX Series Unmanaged PoE Switches
Design for Security Surveillance Networks
Gigabit SFP Uplink
Intelligent PoE Power Supply
Super Cache
Ultra-Long Distance Transmission
| Parameter | V1104-G-S-P | V1108-2S-P | V1116-2S-P1 | V1124-2S-P1 | |
|
Interfaces |
4*GE(RJ45,POE)+
1*GE(Uplink,RJ45) +1*GE(Uplink,SFP) |
8*GE(RJ45,POE)+
2*GE(Uplink,SFP) |
16*GE(RJ45,POE)+
2*GE(Uplink,SFP) |
24*GE(RJ45,POE)+
2*GE(Uplink,SFP) |
|
|
Chassis |
Dimensions
(L*W*H)(mm) |
200*118*44 | 220*161*44 | 440*204*44 | 440*280*44 |
| Weight(KG)
(empty) |
0.63 | 0.9 | 2.82 | 3.55 | |
|
Package |
Dimensions
(L*W*H)(mm) |
245*190*60 | 315*215*85 | 500*290*85 | 500*365*85 |
| Weight(KG)
(empty) |
0.92 | 1.3 | 3.38 | 4.20 | |
| Switching Capacity(Gbps) | 12 | 20 | 36 | 52 | |
| Throughput(Mpps) | 8.928 | 14.880 | 26.784 | 38.68 | |
| Packet Buffer | 1M | 2M | 4M | 4M | |
| MAC Address | 2K | 2K | 8K | 8K | |
| Jumbo Frame | 9Kbytes | 9Kbytes | 9.6Kbytes | 9.6Kbytes | |
| Transfer Mode | Store and forward | Store and forward | Store and forward | Store and forward | |
| MTBF(Hours) | 100,000 | 100,000 | 100,000 | 100,000 | |
| Powe
Voltae |
Input Voltage | Input:AC 100
240V,50/60Hz |
Input:AC 100-
240V,50/60Hz |
Input:AC 100-
240V,50/60Hz |
Input:AC 100-
240V,50/60Hz |
| Power Supply | DC 52V/1.25A | DC 52V/2.3A | DC 52V/5.76A | DC 52V/7.69A | |
| Machine power
consumption(W) |
65W | 120W | 300W | 400W | |
| Indication | PWR,Mode,1-6 ACT,
1-6 1000M |
PWR,Mode,
1-10 ACT,1-10 1000M |
PWR,1-18 ACT,
1-18 1000M |
PWR,1-26 ACT,
1000M,1-26 1000M |
|
